TANK-860-HM86



Features
- Intel® HM86 chipset + 4th generation Intel® Core™ CPU

 - Great flexibility of expansion slots

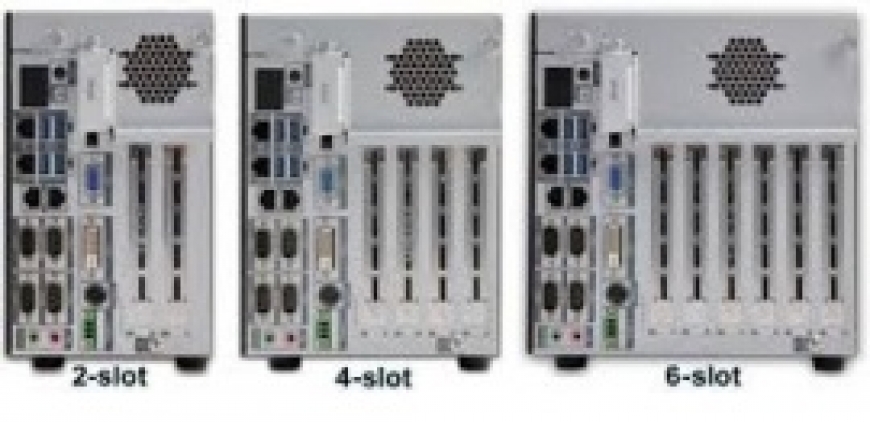

2-slot model: 2 x PCIe by 16, 1 x PCIe Mini slot

4-slot model: 2 x PCIe by 16, 2 x PCI, 2 x PCIe Mini slot

6-slot model: 1 x PCIe by 16, 2 x PCIe by 4, 3 x PCI, 2 x PCIe Mini slot

- IPMI function for remote control management

- Three indpendent video outputs support high resolution

- 2 x 2.5" SATA HDD bay design fulfills high storage demand



Automation Solution

The TANK-860 is a fanless expandable embedded system with PCIe and/or PCI slots. With rich I/O, customers can make it as a control center. Furthermore, the ruggedized design make the TANK-860 more reliable even in harsh environments



Dual 2.5’’ SATA HDD/SSD Bay

With two 2.5" SATA HDD/SSD bays, users can fulfill large storage requirement and use it as a terminal for data acquisition. The easy-to-assemble design reduces user fatigue in system installation.



Swappable CFast Design

CFast is based on the Serial ATA bus and supports up to 300 MBps transfer rates, which is much higher than the CF card. With the hot-swappable design, users can replace the CFast even when the system is running.



Abundant Expansion Interface

The TANK-860 series has a great variety of different expansion interfaces. From basic 2-slot expansion model to advanced 6-slot expansion model, customers can choose the most suitable one to apply.



Versatile Expansion Interface  iRIS Solution

By installing the IEI iRIS-2400 module, the TANK-860 is capable to complete your IoT application through the advanced remote control features, such as power management and control, remote KVM for device status monitoring, sending active alerts and warning messages by e-mail or SMS.



Wide Range Temperature

The TANK-860-HM86 series is designed to withstand wide range of temperatures. With this design, the TANK-860-HM86 series can even be installed in a high-temperature roadside cabinet.



Triple Display

The TANK-860 contains VGA/DisplayPort/DVI video outputs, which can be applied to multi-display application and support high Full HD video quality.



Dual DC Power Input

The TANK-860-HM86 adopts dual DC power input design, which ensures uninterrupted power supply to the system and eliminates the risk of sudden shutdown and data loss, even if one power is unavailable or low voltage capacity is present.



Anti-Vibration and Anti-Shock Design

With the rugged design, the TANK-860-HM86 series is reliable in industrial environments to resist strong vibrations and can be used as a core computer required to be installed on moving objects.



Wide Range DC Power Input

The TANK-860-HM86 series accepts wide range DC power input, allowing it to be powered anywhere, no matter if a 12 V/24 V DC source or a 19 V power adapter is available.



TANK-860-HM86- OS Image with Windows® Embedded Standard 7 E for WES7E-R10 (CD-ROM) TANK-860 H Series, with CD-ROM, RoHS



Ordering Information

	Color	Black C + Silver
	Dimensions	2 slot: 121.5 x 255.2 x 205
		4 slot: 154.8 x 255.2 x 205
	(WxHxD) (mm)
Chassis		6 slot: 195.4 x 255.2 x 205
	System Fan
		Fanless
	Chassis	Extruded aluminum alloys
	Construction
	CPU	Intel® Core™ i5-4400E 2.7 GHz
		Intel® Celeron® 2000E 2.2 GHz
Motherboard	Chipset	Intel® HM86
		2 x 204-pin DDR3 SO-DIMM slot.
	System Memory
		Pre-installed one 4 GB SO-DIMM
IPMI	iRIS Solution	1 x iRIS-2400 (optional)
	Hard Drive	2 x 2.5'' SATA 6Gb/s HDD/SSD bay
Storage	CF Card/CFast	1 x CFast
	mSATA	1 x mSATA (SATA 3Gb/s signal)
	USB 3.0	4
	USB 2.0	2
	Ethernet	2 x RJ-45
		1 x PCIe GbE by Intel® I210
		1 x PCIe GbE by Intel® I217LM
	COM Port	4 x RS-232 (DB-9, two with isolation)
		2 x RS-422/485 (RJ-45)
	Digital I/O	8-bit digital I/O, 4-bit input/4-bit output
	Display	1 x VGA, 1 x DVI-I, 1 x DisplayPort
	Resolution	VGA: Up to 1920 x 1200@60Hz>
		DVI-I: Up to 2500 x 1600@60Hz>
		Displayport: Up to 2500 x 1600@60Hz>
	Audio	1 x Line-out, 1 x Mic-in
	Wireless	1 x 802.11b/g/n (optional)
		2 A: Two PCIe x8 (physical PCIe x16 slot)
	PCI/PCIe	4 A: Two PCIe x8 (physical PCIe x16 slot) +
		2 x PCI
		6 A: One PCIe x8 (physical PCIe x16 slot) +
Expansions		two PCIe x4 + three PCI
		2A: 1 x Full-size (co-lay mSATA)
	PCIe Mini
		4A: 1 x Full-size (co-lay mSATA) +
		1 x Full-size (on backplane)
		6A: 1 x Full-size (co-lay mSATA) +
		1 x Full-size (on backplane)
	Power Input	DC Jack: 9 V~36 V DC
Power	Power	19 This email address is being protected from spambots. You need JavaScript enabled to view it. A
	Consumption	(Intel® Core™ i5-4400E with 4 GB memory)
	Mounting	Wall mount
	Operating	-20°C ~ 60°C with air flow (SSD),
	Temperature	5% ~ 95%, non-condensing
	Storage	-30°C ~70°C with air flow (SSD),
	Temperature	5% ~ 90%, non-condensing
Reliability	Operating Shock	Half-sine wave shock 5G, 11ms, 3 shocks per axis
	Operating
		MIL-STD-810F 514.5C-2 (with SSD)
	Vibration
	Weight	2-slot: 4.2 kg/6.3 kg
		4-slot: 4.5 kg/6.5 kg
	(Net/Gross)
		6-slot: 4.8 kg/6.9 kg
	Safety/EMC	CE/FCC
OS	Supported OS	Microsoft® Windows® 8 Embedded,
		Microsoft® Windows® Embedded Standard 7 E



Part No.			Description
TANK-860-HM86i-			Intel® Core™ i5-4400E 2.7 GHz dual-core, TDP 37W, 4GB
			DDR3 pre-installed memory, 2 x PCIe expansion, VGA/DVI-I/
i5/4G/2A-R10
			DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHS
TANK-860-HM86i-			Intel® Core™ i5-4400E 2.7 GHz dual-core, TDP 37W, 4GB DDR3
			pre-installed memory, 2 x PCIe and 2 x PCI expansion, VGA/
i5/4G/4A-R10
			DVI-I/DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHS
TANK-860-HM86i-			Intel® Core™ i5-4400E 2.7 GHz dual-core, TDP 37W, 4GB DDR3
			pre-installed memory, 3 x PCIe and 3 x PCI expansion, VGA/
i5/4G/6A-R10
			DVI-I/DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHS
TANK-860-HM86i-			Intel® Celeron® 2000E 2.2 GHz dual-core, TDP 37W, 4GB
			DDR3 pre-installed memory, 2 x PCIe expansion, VGA/DVI-I/
C/4G/2A-R10
			DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHS
TANK-860-HM86i-			Intel® Celeron® 2000E 2.2 GHz dual-core, TDP 37W, 4GB DDR3
			pre-installed memory, 2 x PCIe and 2 x PCI expansion, VGA/
C/4G/4A-R10
			DVI-I/DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHS
TANK-860-HM86i-			Intel® Celeron® 2000E 2.2 GHz dual-core, TDP 37W, 4GB DDR3
			pre-installed memory, 3 x PCIe and 3 x PCI expansion, VGA/
C/4G/6A-R10
			DVI-I/DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHS
Options			Description
Part No.
32000-000002-RS			European power cord
32000-089900-RS			European power cord
63040-010120-210-RS  Vin:90~264VAC, 120W, plug=6.5mm, cable=1500mm, Erp
			(no load 0.15W), Vout:19VDC, 4-pin DIN with lock, CCL, RoHS
19Z00-000605-00-RS   Fan, +12V DC, 4-pin, 40 mm x 40 mm x10 mm, 6500RPM, RoHS
iRIS-2400-R10			IPMI 2.0 adapter card with AST2400 BMC chip for DDR3
			SO-DIMM socket interface
EMB-WIFI-KIT01-R11			1T1R Wi-Fi module kit for embedded system, IEEE802.11b/g/n,
			1 x Wi-Fi module, 2 x RF cable, 2 x Antenna, RoHs
