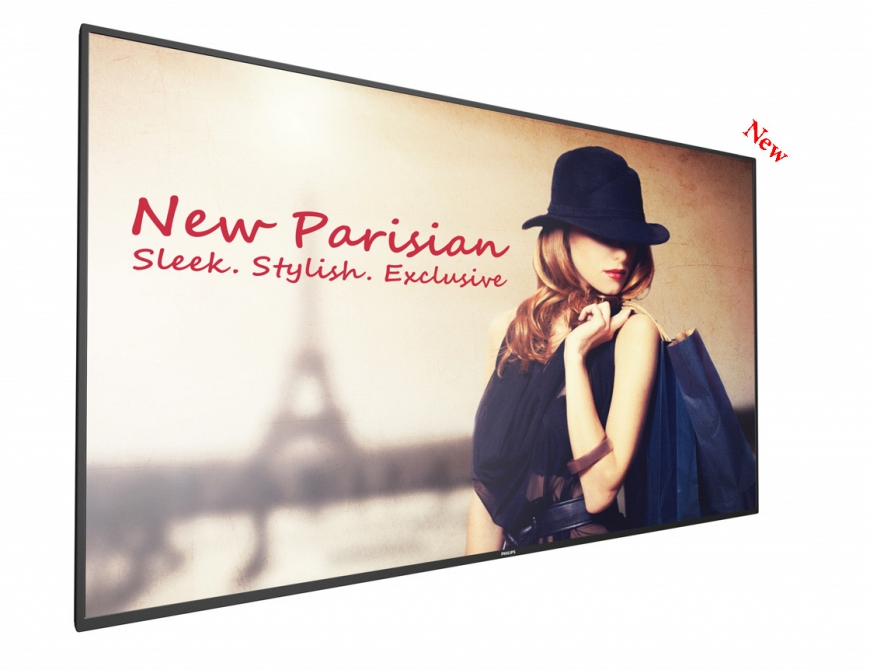

PHILIPS INDUSTRIAL MONITOR-PRO FAMILY MODEL 55BDL4050D

Chasing innovation

powered by Android

Amaze your guests with a smarter, faster, signage display. With integrated WiFi and capable of running Android apps, it's the next evolution in signage solutions.

Innovative solutions for any signage application

Android: A faster, richer, signage experience.

CMND: Take control of your displays

Integrated WiFi

Maximizing the impact of your message

Save and play content with internal memory

Connect and control your content via the cloud

Enhance your connectivity with an integrated mPCIe slot.

Care about you, your business and your audience

Keep your content up and running with FailOver

SmartPower for energy saving

Show clinical images consistently with D-image

Ensure your content is running with automatic screenshots

Specifications

Picture/Display	480p	60Hz	WAV, WMA, ASF, LPCM, M3U, MP4
• Diagonal screen size: 55.5 inch / 140.97 cm	480i	60Hz	• USB Playback Picture: BMP, GIF, JPEG, JPG
• Panel resolution: 1920x1080p	Dimensions		• USB Playback Video: M2TS, M4V, MK3D, MKV,
• Optimum resolution: 1920 x 1080 @ 60Hz			MP4, MPEG, MPG, MTS, TS, TTS, VOB, WMV
• Brightness: 450 cd/m²	• Set dimensions in inch (W x H x D):		Miscellaneous
• Contrast ratio (typical): 1100:1	48.5 x 28.0 x 1.8 inch
• Dynamic contrast ratio: 500,000:1	• Bezel width: 9.5 mm (T/L/R) 15.6mm (B)		• On-Screen Display Languages: English, French,
• Aspect ratio: 16:9	• Product weight (lb): TBD		German, Spanish, Polish, Turkish, Russian, Italian,
• Response time (typical): 12 ms	• Product weight: TBD kg		Simplified Chinese, Traditional Chinese, Arabic,
• Pixel pitch: 0.63 x 0.63 mm	• VESA Mount: 400 x 400 mm, M6		Japanese
• Display colors: 16.7 million	Convenience		• Regulatory approvals: CE, FCC, Class B, UL/cUL,
• Viewing angle (H / V): 178 / 178 degree			CCC, C-Tick, RoHS, GOST, BSMI, CB, J-Moss,
• Picture enhancement: 3/2 - 2/2 motion pull down,	• Memory: 16GB eMMC		PSE, VCCI
3D Combfilter, Motion compens. deinterlacing, 3D	• Placement: Landscape, Portrait		• Warranty: 3 year warranty
MA deinterlacing, Dynamic contrast enhancement,	• Tiled Matrix: Up to 10 x 10
Progressive scan	• Keyboard control: Hidden, Lockable
Connectivity	• Signal Loop Through: DVI, VGA, RS232, IR
	Loopthrough, DisplayPort
• Video input: DisplayPort (1.2), HDMI (x2), DVI-D,	• Network controllable: RJ45, RS232, One Wire
USB	(HDMI-CEC), HDMI (One Wire)
• Video output: DisplayPort, DVI-I	• Energy saving functions: Smart Power
• Audio input: 3.5 mm jack, Audio Left/Right (RCA)	• Screen saving functions: Pixel Shift, Low Bright
• Audio output: Audio Left/Right (RCA), External	• Other convenience: Carrying handles
speaker connector	Power
• Other connections: mPCIe, micro SD, micro USB,
USB power outlet (5 V. 2 amp)	• Consumption (On mode): TBD
• External control: RJ45, RS232C (in/out) 2.5 mm	• Standby power consumption: <0.4 W
jack, IR (in/out) 3.5 mm jack	• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

Supported Display Resolution

• Computer formats

Resolution	Refresh rate
1920 x 1080	60Hz
1440 x 900	60Hz
1366 x 768	60Hz
1360 x 768	60Hz
1280 x 800	60Hz
1280 x 768	60Hz
1024 x 768	60Hz
800 x 600	56, 60, 72, 75Hz
640 x 480	60, 67, 72, 75Hz
• Video formats
Resolution	Refresh rate
1080p	50, 60Hz
1080i	50, 60Hz
720p	50, 60Hz
576i	50Hz
576p	50Hz
