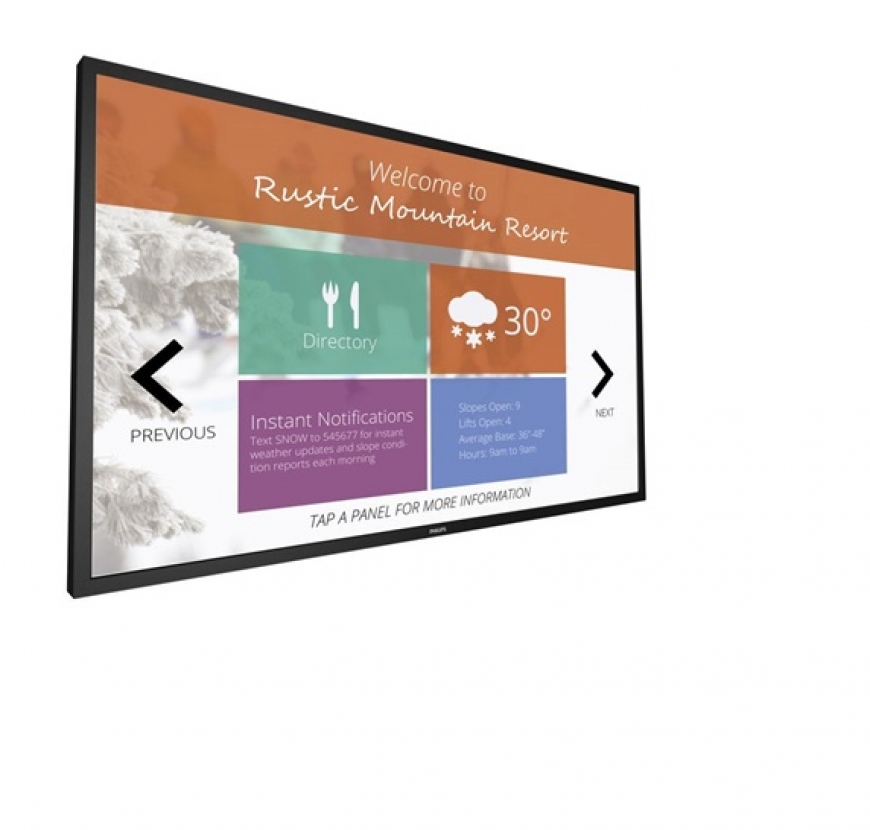

PHILIPS INDUSTRIAL MONITOR-TOUCH FAMILY MODEL 65BDL3010T

Discover a new level of interaction

with this multi touch LED display

Get even closer to your audience than ever before. Fast, precise and extremely durable, its high performance is matched by excellent reliability and functionality.

Supreme audience interaction

Experience amazing interactivity with true Multi-Touch

10 points touch

Anti-glare glass with low optical parallax

Optimized for public viewing

Full HD LED for brilliant images with incredible contrast

AMVA for wide-view super-high contrast, vivid images

Innovative solutions for any signage application

CMND: Take control of your displays

Connect and control your content via the cloud with HTML5

Care about you, your business and your audience

SmartPower for energy saving

Keep your content up and running with FailOver

Simplify meetings with FailOver for conferencing

Specifications

Picture/Display

Diagonal screen size: 65 inch / 163.9 cm
Panel resolution: 1920x1080p
Optimum resolution: 1920 x 1080 @ 60 Hz
Brightness: 350 cd/m²
Contrast ratio (typical): 3000:1
Dynamic contrast ratio: 500,000:1
Surface treatment: Anti-Glare coating
Aspect ratio: 16:9
Response time (typical): 8 ms
Pixel pitch: 0.74 x 0.74 mm
Display colors: 1.07 Billion
Viewing angle (H / V): 178 / 178 degree
Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

Panel technology: VA

Interactivity

Multi-touch technology: Infrared touch
Touch points: 10 simultaneous touch points
Plug and play: HID compliant
Protection glass: 5 mm tempered safety glass, Anti-Glare, Anti-Reflective

Connectivity

Video input: DisplayPort (1.2), HDMI (x2), DVI-D, VGA (Analog D-Sub), USB, Component (BNC), Composite (BNC)

Video output: DisplayPort, DVI-I, VGA (via DVI-D)

Audio input: Audio Left/Right (RCA), 3.5 mm jack

Audio output: Audio Left/Right (RCA), External speaker connector

External control: RJ45, IR (in/out) 3.5 mm jack, RS232C (in/out) 2.5 mm jack

Other connections: USB, OPS

Supported Display Resolution

• Computer formats

Resolution	Refresh rate
640 x 480	60, 67, 72, 75Hz
1024 x 768	60Hz
1280 x 768	60Hz
1280 x 800	60Hz

1280 x 1024	60Hz
1360 x 768	60Hz
1600 x 1200	60Hz
1920 x 1080	60Hz
1920 x 1200	60Hz
720 x 400	70Hz
800 x 600	60, 72, 75Hz
• Video formats
Resolution	Refresh rate
480p	60Hz
576p	50Hz
720p	50, 60Hz
1080p	50, 60Hz
1080i	25, 30Hz
480i	30, 60Hz
576i	25, 50Hz

Convenience

Placement: Landscape (16/7)
Signal Loop Through: RS232, VGA, DisplayPort, DVI

Network controllable: RS232, One Wire (HDMI-CEC), LAN (RJ45)

Screen saving functions: Pixel Shift, Low Brightness

Keyboard control: Hidden, Lockable
Remote control signal: Lockable
Energy saving functions: Smart Power
Other convenience: Carrying handles
Ease of installation: Smart Insert

Dimensions

Bezel width: 29.2
Set dimensions (W x H x D): 1492.40 x 867.40 x 99.80 mm
Set dimensions in inch (W x H x D): 58.76 x 34.15 x 3.93 inch

Product weight: 43.1 kg
Product weight (lb): 95 lb
VESA Mount: 400 x 400 mm, M6
Smart Insert mount: 100 x 100 mm, 100 x 200 mm

Sound

• Built-in speakers: 2 x 10W RMS

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

Relative humidity: 20 ~ 80 %

MTBF: 50,000 hour(s)
Altitude: 0 ~ 3000
Temperature range (storage): -20 ~ 60 °C

Power

Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Standby power consumption: <0.5W
Consumption (On mode): 176 W
Power Saving Features: Smart Power

Accessories

Included accessories: AC Power Cord, RS232 cable, USB cable, Remote Control, Batteries for remote control, Quick start guide, User manual on CD-ROM

Optional accessories: Table top stand, HDBaseT OPS Receiver (CRD25)

Miscellaneous

On-Screen Display Languages: Arabic, English, French, German, Italian, Polish, Spanish, Turkish, Russian, Simplified Chinese, Traditional Chinese, Japanese

Regulatory approvals: CE, UL/cUL, RoHS, CB, C-Tick, EnergyStar 7.0, EPEAT, FCC, Class B, GOST
Warranty: 3 year warranty
