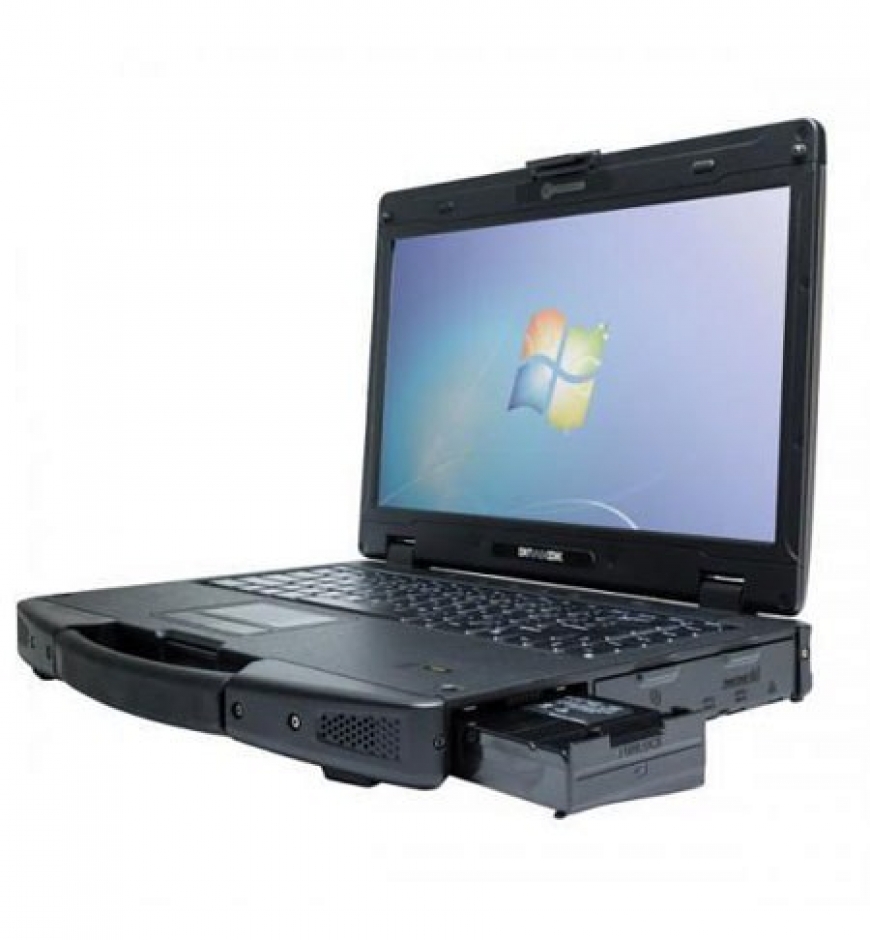

 SA14 FULLY RAGGED LAPTOPS

The specification and pictures are subject to change without notice. All brand names are registered trademarks of their respective owners.

 14” High Performance Rugged Laptop SA14 Specification Battery Charger 1 Pass all function tests after performing IP5x testing with Talcum Powder for 8 hrs 2 Optional items 3 Battery Mark 4.0.1 Life Test Method (Battery life may vary with the product configuration, settings, usage patterns, and operating environment.) 4 Actual weight may vary with different configurations 5 With extended temperature mSATA 6 Available with Sunlight Readable Display 7 Mutually exclusive with Smart Card Reader 8 Mutually exclusive with standard 2.5" SATA HDD

• IP531

• Drop MIL-STD 810G 516.6 Procedure IV, 26 drops from 3 feet height onto plywood over concrete

• Vibration MIL-STD 810G 514.6 AnnexC Cat.4, Fig 514.6C-1 ASTM 4169-08 Truck Transport, 11.5.2 Random test Assurance Level II

• Magnesium Alloy Chassis

• Temperature Operating: -20˚C~ 50˚C5 Storage: -40˚C~ 71˚C

• Humidity Operating: 5% ~ 95%

• Altitude Operating: 15,000 feet MIL-STD 810G 500.5 Procedure II Non Operating: 40,000 feet MIL-STD 810G 500.5 Procedure I

• Genuine Windows 7 Professional2

• Intel® Core™ i5 or i7

• Two DDRIII sockets (Max. 16GB)

• 2.5" SATA HDD 500/750 GB

• mSATA SSD 32 ~ 512GB

• DVD Super Multi

• 14.0" HD (1366x768) TFT LCD

• Resistive Touch Panel2

• Sunlight Readable 500 nits Display2

• Night Vision Mode6

• AMD RadeonTM E6760 with 1GB GDDR52

• Intel High Definition Audio

• 1.5KHz Speaker x 1 / 90db

• Microphone x 2 for Mic. Array

• 1.3 Mega-pixel Web-Cam

• One 10/100/1000 Mbps Ethernet

• Second 10/100/1000 Mbps Ethernet2

• Intel® Centrino® Wireless-N 6235 (802.11 a/b/g/n)

• Bluetooth 4.0

• Gobi 3000 or LTE WWAN2

• GPS2 Rugged Features Environment Operating System CPU Memory Storage Multimedia Bay Display Graphic Audio Camera Communication Security Keyboard & Buttons Expansion Slots I/O Ports Battery AC Adaptor Dimension Weight

• Smart Card Reader

• Computrace® Ready

• Intel® vPro

• TPM 1.2

• Fingerprint Scanner

• Kensington Lock

• Stealth Mode

• Quick Release HDD

• Power ON / OFF button

• RF ON / OFF button

• Quick Setting Control button

• One Programmable button

• One Stealth or Night Vision Mode button

• Backlit Keyboard2

• One PCMCIA Type II slot2

• One SD card reader slot (SDHC)

• One Smart Card Reader

• Two USB2.0

• Two USB3.0

• One headphone jack

• One microphone jack

• One RJ-45

• Second RJ-452

• One HDMI type A connector

• One VGA port

• One RS232 port

• One DC-In

• Docking connector2

• Two Hot-Swap Li-ion battery packs2

• Primary 9-Cell 7800 mAh battery pack: 7 hrs3

• Secondary 6-Cell 5200 mAh battery pack:5 hrs2,3,8

• Providing up to 12 hrs with two batteries3

• 110V - 240V; 90W

• 342 mm (L) x 245 mm (W) x 47 mm (H)

• 3.4 Kg/7.48 lbs3 ( with 9-cell battery and 2.5" SATA HDD) 6-Cell Battery Office Dock Vehicle Dock Accessories Car Adapter

• DC-In: 12V-24V, 65W

• DC-out: 19V Stealth Mode Robust Features

• IP53 for dust/water resistance

• MIL-STD 810G protection against vibration, drop and shock

• Wide operating temperature: -20℃ ~ 50℃ (with extended temperature mSATA)

• Wide temperature storage: -40℃ ~ 71℃

• Operating humidity: 5% ~ 95%

• Magnesium alloy chassis Multi-Function Bay 1 – High Performance Graphics Processing Unit Multi-Function Bay 2 – Hot Swappable Second Battery Backlit Keyboard SA14 comes with optional waterproof backlit keyboard for ease of operation in low light condition. www.durabook.com SA14 DURABOOK QSC

• System Information

• On/Off for WLAN, WWAN, Bluetooth, and GPS

• Programmable button setting

• Indicator for BIOS/EC version

• Stealth Mode / Night Vision Mode setting Display Feature 14” HD Widescreen Display SA14 is equipped with 14 inch TFT LCD (1366 x 768) with Anti-Glare Coating Glass for exceptional visual performance. Sunlight Readable Display Wireless Connectivity

• Ultrafast LTE module enhances the WWAN data transmission speed

• Intel® Centrino® Advanced-N 6235 delivers premium WiFi performance (WLAN 802.11 a/b/g/n)

• Bluetooth 4.0 Class 1 technology delivers long distance transmission with low-energy and low-latency

• WWAN Gobi 3000

• Global Positioning System (GPS) DURABOOK Quick Setting Control provides One-Key quick setting to all of your most frequently used functions: HD Advanced Security and Management Technologies

• Intel® vProTM

• Computrace® Ready

• Biometric Fingerprint Scanner

• Smart Card Reader

• TPM1.2 Night Vision Mode Night Vision Mode is standard when equipped with Sunlight Readable LCD. The Night Vision Mode complies with NVIS Type I Class A requirement for brightness and chromaticity. Night Vision Mode can be switched On/Off with a quick button. LTE The exclusively designed Stealth Mode can be used in special missions such as stakeout operation. With a quick press of button, Stealth Mode immediately turns off all sounds and emitting lights including LCD, LED indicators, and backlit keyboard while all programs remain running in the background. With demand for higher graphics performance, SA14 offers superior 35W AMD Radeon E6760 GPU with 1GB GDDR5 for unmatched graphics performance in rugged laptop. The Multi-Function Bay comes with the option of switching between using the AMD Radeon E6760 GPU or Optical Disk Drive. The second 6-cell battery is compatible with mSATA storage device. When using the 6-cell battery, the standard 2.5” SA14 is designed with an optional 6-cell battery that runs for more than 12 hours when paired with the primary 9-cell battery.The two battery packs enable the Hot-Swappable feature and further extends the operating hours. SATA HDD is replaced by the mSATA storage device. With circular polarizer, anti-reflective coating and enhanced 500nits brightness, SA14 provides excellent LCD display even in ultra-bright, direct sunlight.
