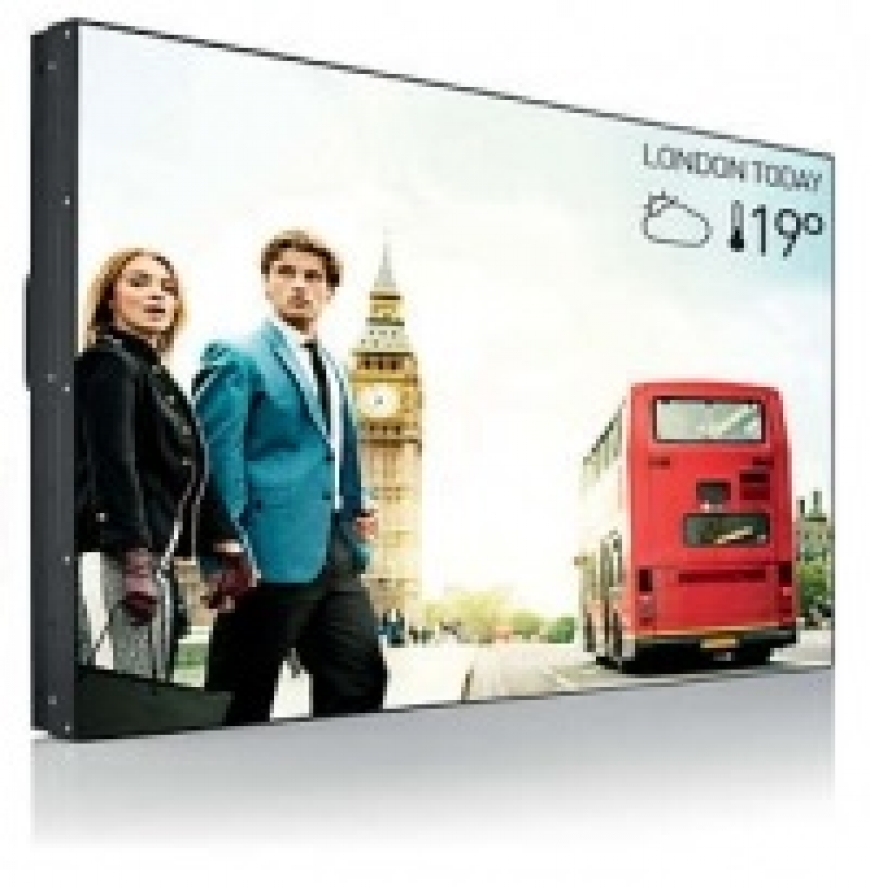

Create new stopping power

with Ultra Narrow Bezel displays

Impress your audience with the most impactful video wall. With ultra narrow bezel and stunning picture quality, you are sure to create the most memorable visual experience



Optimized for public viewing

• Full HD LED technology for brilliant images
• IPS wide view technology for image and color accuracy
• Designed for 24/7 operation



Maximizing the impact of your message

• Immersive visual experience with Ultra Narrow Bezel
• Colour Calibration kit to ensure uniform colours
• Manage and control your video wall remotely via SmartControl



Innovative solutions for any signage application

• Optional OPS Insert to create an all-in-one solution



Care about you, your business and your audience

• SmartPower for energy saving
• Keep your content up and running with FailOver



Specifications

Picture/Display

• Diagonal screen size: 46.9 inch / 119.2 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 500 cd/m²
• Contrast ratio (typical): 1400:1
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 12 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.54 x 0.54 mm
• Display colors: 1.06 Billion
• Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement



Supported Display Resolution

• Computer formats

Resolution	Refresh rate
640 x 480	60, 67, 72, 75Hz
800 x 600	56, 60, 72, 75Hz
1024 x 768	60Hz
1280 x 768	60Hz
1280 x 800	60Hz
1280 x 1024	60Hz
1360 x 768	60Hz
1366 x 768	60Hz
1440 x 900	60Hz
1600 x 1200	60Hz
1920 x 1080	60Hz
1920 x 1200	60Hz
• Video formats
Resolution	Refresh rate
480i	60Hz
480p	60Hz
576p	50Hz
576i	50Hz
720p	50, 60Hz
1080i	50, 60Hz
1080p	50, 60Hz

















































Connectivity

• Video input: DisplayPort (1.2), DVI-D, HDMI, VGA (Analog D-Sub), Component (BNC), Composite (BNC)
• Video output: DVI-I, VGA (via DVI-I)
• Audio input: 3.5 mm jack, Audio Left/Right (RCA)
• Audio output: Audio Left/Right (RCA), External speaker connecto
•  External control: IR (in/out) 3.5 mm jack, RJ45,RS232C (in/out) D-Sub9
• Other connections: OPS
• Receiver (CRD25)



Convenience
• Signal Loop Through: RS232, VGA, DisplayPort,
DVI, IR Passthrough
• Ease of installation: Carrying Handles
• Energy saving functions: Ambient light sensor,
Smart Power
• Network controllable: RS232, RJ45, Card OPS
RS232, One Wire (HDMI-CEC)
• Placement: Portrait, Landscape
• Screen saving functions: Pixel Shift, Low Bright
• Tiled Matrix: Up to 10 x 10























Miscellaneous

• On-Screen Display Languages: Arabic, Simplified,Chinese, Traditional Chinese, English, French,German, Italian, Japanese, Polish, Russian, Spanish,Turkish

• Regulatory approvals: CE, FCC, Class B, UL/cUL, CB, GOST, EPEAT

• Warranty: 3 year warranty







Dimensions

• Bezel thickness: 4.9 mm
• Bezel width: Top/Left: 3.20 mm, Bottom/Right: 1.70 mm
• Set dimensions (W x H x D): 1044.9 x 590.0 x 108.8 mm
• Product weight: 25.5 kg
• VESA Mount: 400 x 400, 400 x 200, 200 x 200 mm, M6
• Smart Insert mount: 200 x 100, 100 x 100 mm, M4



Operating conditions

• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• Relative humidity: 20 ~ 80 %
• MTBF: 50,000 hour(s)



Power

• Consumption (On mode): 86 W (EnergyStar 6.0 test method)
• Standby power consumption: <0.5W



Sound

• Built-in speakers: 2 x 10W (RMS)



Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, RS232 cable, IR sensor cable (1.8M), User manual on CD-ROM, Quick start guide, Edge alignment pins, Edge alignment plates
• Optional accessories: Edge finishing kit, ColourCalibrationKit (CCK4601), HDBaseT OPS
