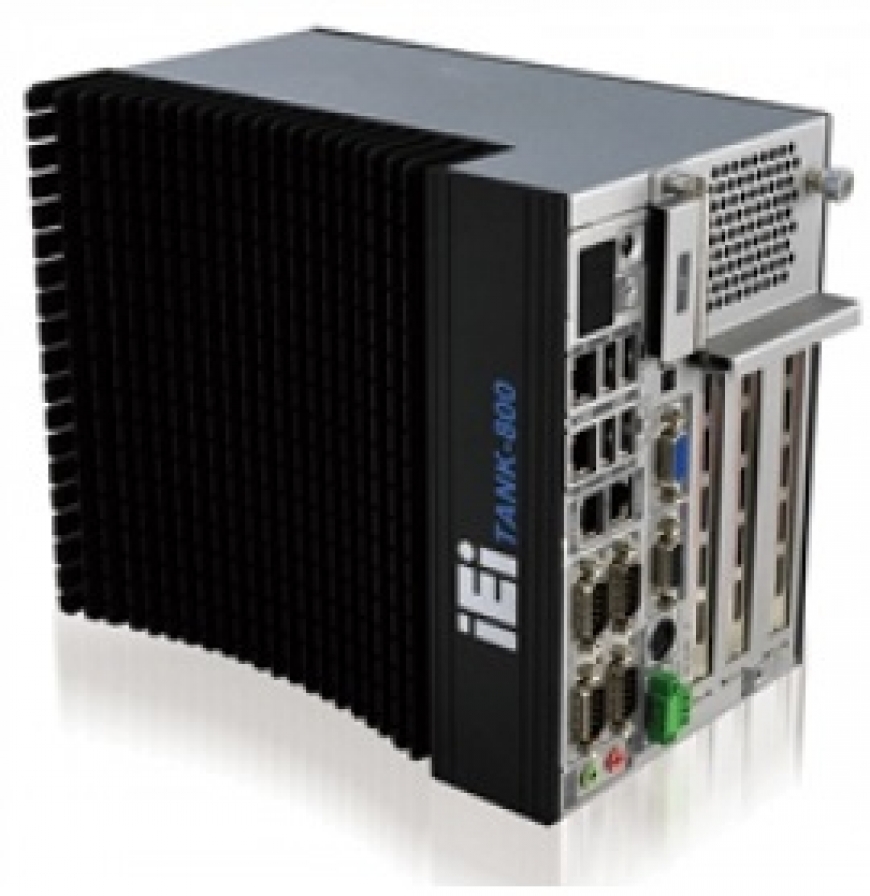

 TANK-800-D525



Features

  • Intel® Atom™ D525 1.8 GHz dual-core processor for TANK-800 2nd/3rd generation Intel® Core™ low power desktop processors (max TDP. 65W) for TANK-820
  • On-board 1GB DDR3 memory and one DDR3 SO-DIMM slot (system max. 3GB) for TANK-800
  • Dual wide range DC power support (TANK-800-D525: 9 V~36 V DC)



Versatile Expansion Interface

The TANK-800/820 series has various kinds of expansion interfaces which allow you to connect additional circuits or expansion boards to the system via IEI riser cards. These expansion options provide flexible function enhancement and simplify system integration.

  • The two types of backplane support standard PCI/PCIe cards with maximum dimensions (111 mm in width x 190 mm in length).
  • The rated voltage and current of the backplane



Voltage Current Voltage Current
+5 V 7 A -12 V 0.1 A
+12 V 3.75 A +3.3 V 8 A









Specifications

Model Name   TANK-820-H61 TANK-800-D525
  Color Black C + Silver Black C + Silver
Chassis Dimensions (WxDxH) (mm) 133 x 269 x 208 136 x 219 x 188
System Fan Fanless Fanless

  Chassis Construction Extruded aluminum alloys Extruded aluminum alloys
  CPU Intel® Core™ i5-2xxT (above 2.7 GHz)
  Intel® Core™ i3-2xxT (above 2.5 GHz) Intel® Atom™ D525 1.8 GHz
Motherboard   Intel® Pentium® G6xxT (above 2.2 GHz)
Chipset Intel® H61 Intel® ICH8M

  System Memory On-board DDR3 2 GB memory On-board DDR3 1 GB memory
  1 x 204-pin DDR3 SO-DIMM (system max: 10 GB) 1 x 204-pin DDR3 SDRAM SO-DIMM (system max: 3 GB)

Storage Hard Drive 1 x 2.5'' SATA 3Gb/s HDD/SSD bay 1 x 2.5'' SATA 3Gb/s HDD/SSD bay
CF Card/CFast 1 x CF Type II 1 x CF Type II

  USB 3.0 2 N/A
  USB 2.0 4 4
  Ethernet 2 x RJ-45 2 x RJ-45
  PCIe GbE by Realtek 8111E PCIe GbE by Realtek 8111E

  COM Port 4 x RS-232 (DB-9, two with isolation) 4 x RS-232 (DB-9)
I/O Interfaces 2 x RS-422/485 (RJ-45) 2 x RS-422/485 (RJ-45)

Digital I/O 8-bit digital I/O, 4-bit input/4-bit output 8-bit digital I/O, 4-bit input/4-bit output

  Display 1 x VGA, 1 x DVI-I 1 x VGA
  Resolution VGA: Up to 2048 x 1536@75Hz> VGA: Up to 2048 x 1536@75Hz>
  DVI-I: Up to 1920 x 1080@60Hz>

  Audio 1 x Line-out, 1 x Mic-in 1 x Line-out, 1 x Mic-in
  PCI 2P1E: 2 x PCI, 1P2E: 1 x PCI 2P1E: 2 x PCI, 1P2E: 1 x PCI
Expansions PCle 2P1E: One PCIe x8 (physical PCIe x16 slot) 2P1E: One PCIe x4 (physical PCIe x16 slot)
  1P2E: One PCIe x1 (physical x4 slot), 1P2E: One PCIe x1 (physical x4 slot),
    One PCIe x8 (physical x16 slot) One PCIe x2 (physical x16 slot)
  Power Input DC Jack: 9 V~24 V DC DC Jack: 10.5 V~36 V DC
  Terminal Block: 9 V~24 V DC Terminal Block: 9 V~36 V DC
Power
Power Consumption 19 V@3.5 A 19 This email address is being protected from spambots. You need JavaScript enabled to view it. A
  (Intel® Core™ i3-2100 with 6 GB DDR3 memory) w/o add-on
  (Intel® Atom™ D525 with 1 GB DDR3 Memory)
    card

  Mounting Wall mount Wall mount
  Operating Temperature -20°C ~ 60°C with air flow (SSD), 5% ~ 95%, non-condensing -20°C ~70°C with air flow (SSD), 5% ~ 95%, non-condensing
  Storage Temperature -20°C ~ 70°C -20°C ~ 70°C
Reliability Operating Shock Half-sine wave shock 5G, 11ms, 3 shocks per axis Half-sine wave shock 5G, 11ms, 3 shocks per axis
  Operating Vibration MIL-STD-810F 514.5C-2 (with SSD) MIL-STD-810F 514.5C-2 (with SSD)
  Weight (Net/Gross) 4.2 kg/6.3 kg 2.6 kg/4.1 kg
  Safety/EMC CE/FCC CE/FCC
OS Supported OS Microsoft® Windows® Embedded Standard 7 E, Microsoft® Windows® Embedded Standard 7 E,
Microsoft® Windows® XP Embedded

Microsoft® Windows® XP Embedded




Part No. Description
TANK-800-D525/1GB/2P1E-R12 Extended temperature fanless embedded system with one PCIe x4 and two PCI expansion, Intel® Atom™ D525 1.8 GHz dual core processor,
dual 9 V-36 V DC-IN, on-board 1GB DDR3 memory, -20°C ~ 70°C, RoHS

TANK-800-D525/1GB/1P2E-R12 Extended temperature fanless embedded system with one PCIe x1, one PCIe x2 and one PCI expansions, Intel® Atom™ D525 1.8 GHz dual
core processor, dual 9 V-36 V DC-IN, on-board 1GB DDR3 memory, -20°C ~ 70°C, RoHS
