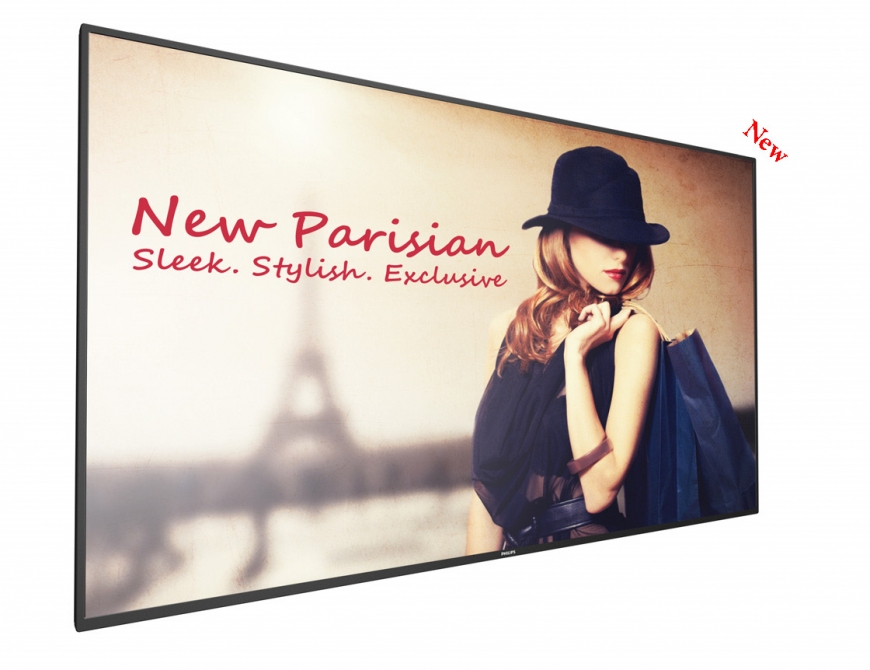

PHILIPS INDUSTRIAL MONITOR-PRO FAMILY MODEL 43BDL4050D

Chasing innovation

powered by Android

Amaze your guests with a smarter, faster, signage display. With integrated WiFi and designed for running Android apps, it's the next evolution in signage solutions.

Innovative solutions for any signage application

Android: Run your own app or choose your favorite app to run

Enhance your connectivity with an integrated mPCIe slot.

Integrated WiFi

Save and play content with internal memory

Maximizing the impact of your message

CMND: Take control of your displays

Create and update content with CMND & Create

Manage settings of multiple displays with CMND & Control

Connect and control your content via the cloud

Care about you, your business and your audience

Ensure your content is running with automatic screenshots

Keep your content up and running with FailOver

SmartPower for energy saving

Specifications

Picture/Display

Diagonal screen size: 42.5 inch / 108.0 cm
Panel resolution: 1920x1080p
Optimum resolution: 1920 x 1080 @ 60Hz
Brightness: 450 cd/m²
Contrast ratio (typical): 1100:1
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Response time (typical): 12 ms
Pixel pitch: 0.4902 x 0.4902 mm
Display colors: 16.7 million
Viewing angle (H / V): 178 / 178 degree
Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, 3D MA deinterlacing, Dynamic contrast enhancement, Progressive scan

Connectivity

Video input: DisplayPort (1.2), HDMI (x2), DVI-D, USB, VGA (via DVI)

Video output: DisplayPort, DVI-I, VGA (via DVI-D)

Audio input: 3.5 mm jack, Audio Left/Right (RCA)

Audio output: Audio Left/Right (RCA), Ext. speaker cntrl (aud. out)

Other connections: mPCIe, micro SD, micro USB, USB power outlet (5 V. 2 amp)

External control: RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack

Supported Display Resolution

• Computer formats

Resolution	Refresh rate
1920 x 1080	60Hz
1440 x 900	60Hz
1366 x 768	60Hz
1360 x 768	60Hz
1280 x 800	60Hz
1280 x 768	60Hz
1024 x 768	60Hz
800 x 600	56, 60, 72, 75Hz
640 x 480	60, 67, 72, 75Hz
• Video formats
Resolution	Refresh rate
1080p	50, 60Hz
1080i	50, 60Hz
720p	50, 60Hz
576i	50Hz
576p	50Hz

480p	60Hz
480i	60Hz

Dimensions

Set dimensions (W x H x D):

x 558.8 x 45.72 mm

Set dimensions in inch (W x H x D):

x 22.0 x 1.8 inch

Bezel width: 9.5 mm (T/L/R), 15.6 mm (B)
Product weight (lb): 23.59 lb
Product weight: 10.70 kg
VESA Mount: 400 x 400 mm, M6

Convenience

Placement: Landscape (24/7), Portrait (24/7)
Tiled Matrix: Up to 15 x 15
Keyboard control: Hidden, Lockable
Signal Loop Through: DVI, VGA, RS232, IR Loopthrough, DisplayPort

Network controllable: RJ45, RS232, One Wire (HDMI-CEC), HDMI (One Wire)

Energy saving functions: Smart Power
Screen saving functions: Pixel Shift, Low Bright

Power

Standby power consumption: <0.4 W
Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (EPA 6.0): 52 W
Consumption (Typical): 59 W

Operating conditions

Temperature range (operation): 0 ~ 40 °C
Temperature range (storage): -20 ~ 60 °C
Relative humidity: 20 ~ 80 %
Altitude: 0 ~ 3000 m
MTBF: 50,000 hour(s)

Sound

• Built-in speakers: 2 x 10W RMS

Accessories

Included accessories: Remote Control, Batteries for remote control, Quick start guide, RS232 cable, AC Power Cord

Stand: BM05922 (Optional)
Optional accessories: ColourCalibrationKit (CCK4601)

Multimedia Applications

USB Playback Audio: AAC, AIF, AIFF, M4A, MP3, WAV, WMA, ASF, LPCM, M3U, MP4

USB Playback Picture: BMP, GIF, JPEG, JPG, PDF

USB Playback Video: M2TS, M4V, MK3D, MKV, MP4, MPEG, MPG, MTS, TS, TTS, VOB, WMV

Miscellaneous

On-Screen Display Languages: English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish
