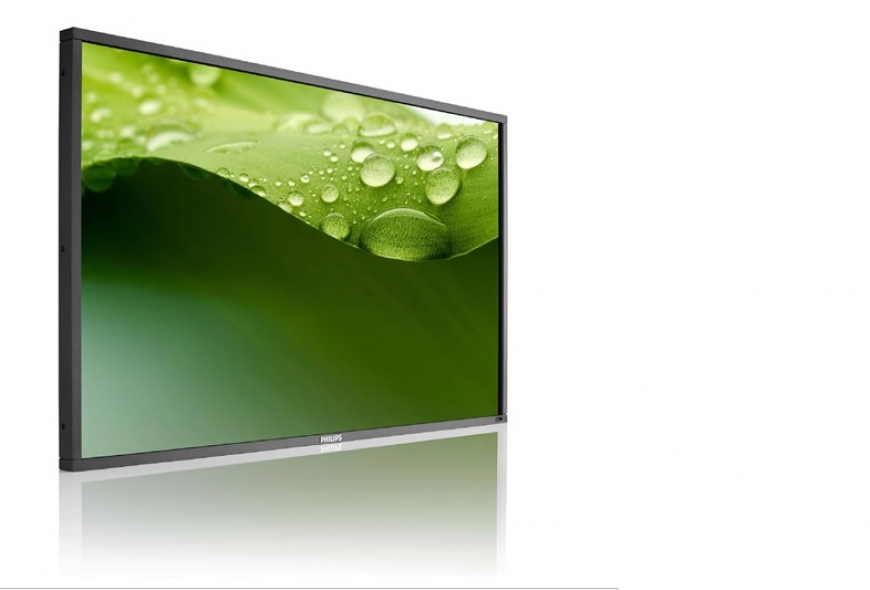

PHILIPS INDUSTRIAL MONITOR-PRO FAMILY MODEL BDL5580VL

PHILIPS INDUSTRIAL MONITOR-PRO FAMILY MODEL BDL5580VL

Connect with your audience 24/7

With the future proof Smart Collection



With this high brightness Signage Solution display, you will enjoy all the benefits of state-of-the-art connectivity and content management possibilities while being ensured that remote management safeguards the lowest cost of ownership.



Optimized for public viewing

  • Full HD LED technology for brilliant images
  • IPS wide view technology for image and color accuracy
  • High brightness for clearer images



Care about you, your business and your audience

  • SmartPower for energy saving
  • Keep your content up and running with FailOver



Innovative solutions for any signage application

  • Free and easy-to-use content management with SmartCMS
  • Connect and control your content via the cloud with HTML5
  • Schedule what you want, when you want with SmartPlayer
  • Optional OPS Slot
  • Connect your display and start sharing with DLNA



Maximizing the impact of your message

• Manage and control your network remotely via SmartControl

Specifications

Picture/Display • VESA Mount: 400 x 400 mm, 400 x 200 mm, 200 x
• Diagonal screen size: 54.6 inch / 139 cm 200 mm
• Panel resolution: 1920x1080p • Smart Insert mount: 100 x 100 mm, 100 x 200 mm
• Optimum resolution: 1920 x 1080 @ 60 Hz Convenience
• Brightness: 700 cd/m²
• Contrast ratio (typical): 4000:1 • Placement: Landscape, Portrait
• Dynamic contrast ratio: 500,000:1 • Tiled Matrix: Up to 10 x 10
• Aspect ratio: 16:9 • Keyboard control: Hidden, Lockable
• Response time (typical): 6.5 ms • Signal Loop Through: RS232, DVI, IR Loopthrough,
• Pixel pitch: 0.63 x 0.63 mm VGA, DisplayPort
• Display colors: 1073.3 million • Network controllable: RJ45, RS232, One Wire
• Viewing angle (H / V): 178 / 178 degree (HDMI-CEC), Card OPS RS232, HDMI (One Wire)
• Picture enhancement: 3/2 - 2/2 motion pull down, • Energy saving functions: Smart Power
3D Combfilter, Motion compens. deinterlacing, • Ease of installation: Smart Insert, AC Out
Progressive scan, 3D MA deinterlacing, Dynamic • Screen saving functions: Pixel Shift, Low Bright
contrast enhancement • Other convenience: Carrying handles
Connectivity Power
• Video input: DisplayPort (1.2), HDMI (x2), DVI-D, • Consumption (On mode): 110W (EnergyStar 6.0
VGA (Analog D-Sub), USB, Component (RCA), test method)
Composite (RCA) • Standby power consumption: <0.5 W
• Video output: DisplayPort, DVI-I, VGA (Analog D- • Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Sub) Operating conditions
• Audio input: 3.5 mm jack, Audio Left/Right (RCA)
• Audio output: Audio Left/Right (RCA), External • Temperature range (operation): 0 - 40 °C
speaker connector • Temperature range (storage): -20 ~ 60 °C
• Other connections: OPS • Relative humidity: 5 - 90 %
• External control: RJ45, RS232C (in/out) 2.5 mm jack, • Altitude: 0 ~ 3000 m
IR (in/out) 3.5 mm jack • MTBF: 60,000 hour(s)


Supported Display Resolution

• Computer formats

Resolution Refresh rate
1920 x 1200 60Hz
1920 x 1080 60Hz
1440 x 900 60Hz
1366 x 768 60Hz
1360 x 768 60Hz
1280 x 800 60Hz
1280 x 768 60Hz
1024 x 768 60Hz
800 x 600 56, 60, 72, 75Hz
640 x 480 60, 67, 72, 75Hz
• Video formats
Resolution Refresh rate
1080p 50, 60Hz
1080i 50, 60Hz
720p 50, 60Hz
576i 50Hz
576p 50Hz
480p 60Hz
480i

60Hz



Dimensions

  • Set dimensions (W x H x D): 1244.4 x 715.2 x 69 mm
  • Bezel width: 15.8 mm
  • Product weight: 30.2 kg

Sound

       • Built-in speakers: 2 x 10 W RMS



Multimedia Applications

  • USB Playback Video: M2TS, M4V, MK3D, MKV, MP4, MPEG, MPG, MTS, TS, TTS, VOB, WMV
  • USB Playback Picture: BMP, GIF, JPEG, JPG
  • USB Playback Audio: AAC, AIF, AIFF, M4A, MP3, WAV, WMA, ASF, LPCM, M3U, MP4

Accessories

  • Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide, RS232 cable
  • Stand: BM05462 (Optional)
  • Optional accessories: ColourCalibrationKit (CCK4601), HDBaseT OPS Receiver (CRD25)



Miscellaneous

  • On-Screen Display Languages: English, French, German, Italian, Polish, Turkish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic, Japanese
  • Regulatory approvals: CE, FCC, Class B, CCC, RoHS, UL/cUL, C-Tick, BSMI, CB, GOST, J-Moss, PSE, VCCI
  • Warranty: 3 year warranty
