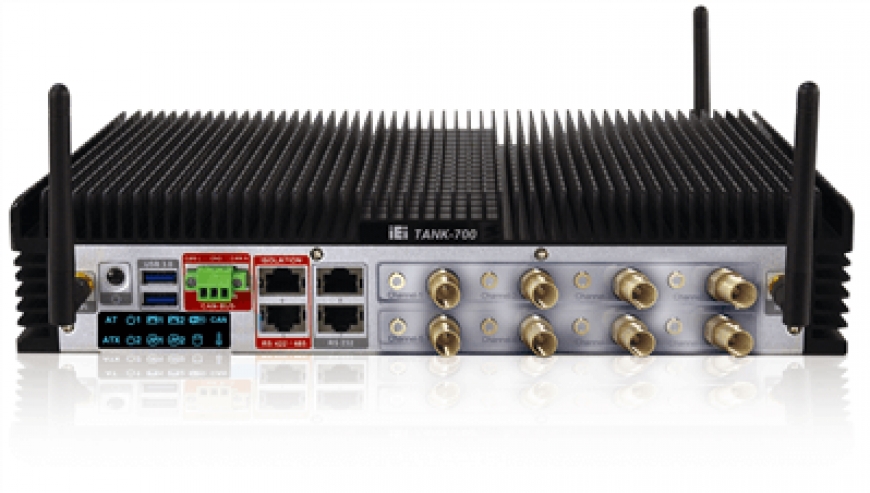

 TANK-700-QM67

High Performance Fanless Embedded System with 2nd Generation
Intel® Core™ i7/i5/i3 Processor









Features

  • 2nd Gen Intel® Core™ i7/i5/i3 or Celeron® mobile processors for TANK-700
  • Intel® HD graphics supports H.264/AVC-MPEG2/VC1, DirectX 10.1 and OpenGL 3.0
  • On-board 2GB DDR3 memory and one DDR3 SO-DIMM slot (system max. 10 GB)
  • Dual combo (10/100/1000 BASE-T(X) or 1000 baseSFP slot RJ-45 port) Gigabit LAN ports, supporting Intel® AMT 7.0
  • Supports 8-channel audio/video capture and dual display by VGA and HDMI
  • Dual-band 2.4/5 GHz 802.11a/b/g/n 3T3R MIMO Wi-Fi for high speed wireless transmission

8-Channel Audio/Video Capture Solution

With an H.264 codec, the TANK-700/720 series is capable of compressing and decompressing Full HD (1920x1080) video in real-time without increasing CPU loadings. By supporting real-time recording, previewing, and HD video transmission through surveillance devices, the TANK-700/720 series is suitable as an intelligent monitoring system and transportation intelligent scheduling system solution.



Fully Integrated I/O

Power switch and LED
1. Long-press 3 sec. to power on
2. Long-press 6 sec. to power off













ACC on/off

ACC on mode is designed for vehicle applications.

Use the ACC signal to control power on/off.



Reset

The reset button forces the system to be reset when system hangs up.



Remote control

Users can power on/off the system by inputting low or high voltage into the terminal block.

High (2 V~5 V): Power off Low (< 0.4 V): Power on

AT/ATX mode

Users can select a suitable mode according to

the application.



Model Name TANK-700-QM67
Color Black C + Silver
Dimensions 310 x 200 x 62
(WxDxH) (mm)
Chassis
System Fan Fanless
Chassis Extruded aluminum alloys
Construction
CPU Intel® Core™ i5-2xxE (above 2.5 GHz)
Intel® Core™ i3-2xxE (above 2.2 GHz)
Motherboard Intel® Celeron® B8xx (above 1.6 GHz)
Chipset Intel® QM67
System Memory On-board DDR3 2 GB memory
1 x 204-pin DDR3 SO-DIMM (system max: 10 GB)
Storage Hard Drive 2 x 2.5'' SATA 3Gb/s HDD/SSD bay
USB 3.0 2
USB 2.0 4
Ethernet 2 x Combo (SFP Fiber/RJ-45)
1 x PCIe GbE by Intel® 82579
1 x PCIe GbE by Intel® 82583V
Fiber 2 x Combo (SFP Fiber/RJ-45)
COM Port 4 x RS-232 (DB-9)
2 x RS-232 (RJ-45, with isolation)
I/O Interfaces 2 x RS-422/485 (RJ-45, with isolation)
Digital I/O 8-bit digital I/O, 4-bit input/4-bit output
CAN-bus 1 x Phoenix terminal block
Display 1 x VGA, 1 x HDMI
Resolution VGA: Up to 2048 x 1536@75Hz>
HDMI: Up to 1920 x 1200@60Hz>
Audio 1 x Line-out, 1 x Mic-in
Wireless 1 x 802.11a/b/g/n 3T3R (optional)
Other Optional 4-channel audio/video input PCIe Mini Card
Expansions PCIe Mini 3 x Full size
Power Input DC Jack: 10.5 V~36 V DC
Terminal Block: 9 V~36 V DC
Power
Power 19 V@3.3 A
Consumption (Intel® Core™ i5-2540M with 4 GB DDR3 Memory)
Mounting Wall mount
Operating -20°C ~70°C with air flow (SSD), 5% ~ 95%, non-condensing
Temperature
Operating Shock Half-sine wave shock 5G, 11ms, 3 shocks per axis
Reliability Operating MIL-STD-810F 514.5C-2 (with SSD)
Vibration
Weight 3.8 kg/6.5 kg
(Net/Gross)
Safety/EMC CE/FCC
OS Supported OS Microsoft® Windows® Embedded Standard 7 E,
Microsoft® Windows® XP Embedded
